PCI bus
4 FXS module(FXS400) is already installed

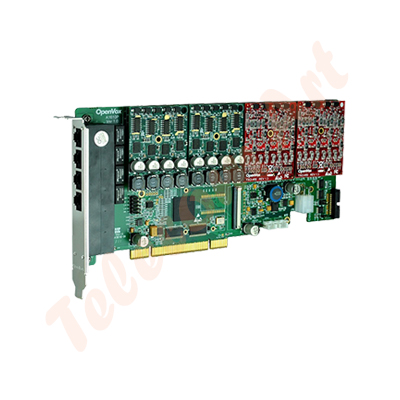

OpenVox A(E)810 Series can be used for connecting analog telephones and analog POTS lines through a PC. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 8 ports.
A(E)810 Series is a new generation analog card, and AE810 with Octasic® Hardware Echo Cancellation Module on board. With interchangeable quad-FXS and quad-FXO modules, it can eliminate the requirement for separate channel banks or access gateways.
The A(E)810 Series contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
Once the Octasic® DSP module EC2032 is added to the AE810 Series, please make sure you are ready to say goodbye to the poor voice quality and echo echo echo in your phone system. No one will even get a chance to hear that any more! The AE810 Series with Octasic DSP module will support Telco-grade hardware echo cancellation on all channels, up to the card’s maximum configuration in 8 ports with no additional CPU load.
A810 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
Target Applications
Channel Bank Replacement / Alternative
Small Office Home Office (SOHO) applications
Small and Medium Business (SMB) applications
Gateway Termination to analog telephones/lines
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI-E/PCI Slot
Technical Specifications
Up to 8 ports through a combination of FXS400 and FXO400 modules
Full-length/Half-length analog card
Up to 2 quad FXS or FXO modules
RJ11 connector
FPGA design, upgradeable firmware onsite
Operating Systems
Linux (all versions, releases and distributions from 1.0 up)
Certifications
RoHS Compliant
Certificates: FCC, CE and CS-03
Optional Octasic® DSP Echo Cancellation Module — EC2032
1024 taps/128 ms tail/channel (on all channel densities)
Octasic® music protection
Automatic level control (G.169)
Field upgradeable algorithm
V.25 / V.8 answer tone
DTMF as per Q.24
No CPU load as a result of echo cancellation.
Does not increase the physical size of the card, and no additional slot is required
EC2032 (SMEC V1.1) power consumption: 3.83W
