Description

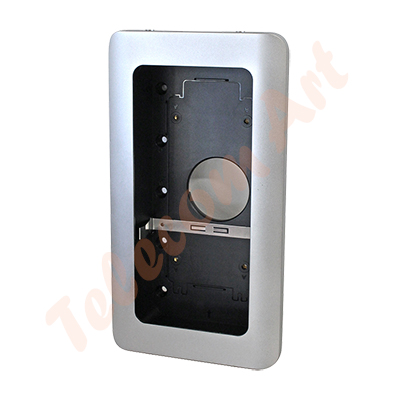

Grandstream GDS37xx Series IP Video Door System In-The In-Wall Mounting Kit is available for use with the GDS37xx IP Video Door Phone. This mounting kit allows the GDS37xx to be mounted flushed within a wall rather on the surface of the wall. It supports solid wall, stud and drywall (hollow wall) installation. When installing the GDS37xx or the In-Wall Mounting kit, please follow local building and electrical code. The device is suggested to be installed with the bottom of the device 50-55 inches above the ground.
Required In-Wall Space:
99.8mm (3,93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)
Package Contents:
1 installation bracket
1 cover plate
1 plastic box
1 drill template
Quick reference guide
1 metal frame
6 piece anchor and screw set
12 screws (2 different lengths)
12 nuts (2 different styles)
6 anti-tamper screws
1 anti-tamper hex key
